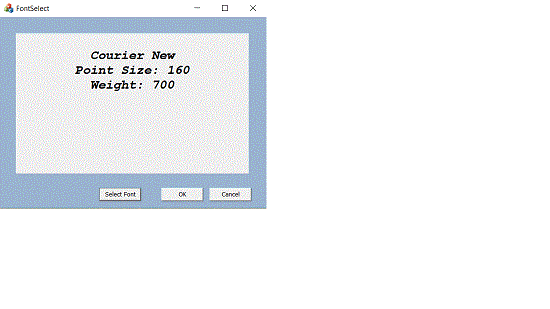

Selected Font name, Point Size and Weight are displayed

Image 1


This is a program to view system fonts of different names, sizes and weights.


This program will allow the user to see what different fonts and sizes will look like on different background colors.

To view large fonts, the user can select maximize button. Right click the center of the screen and select the background color for the "Static Control". Click Select Font and pick a font to display.

Using the Code

Some items that need to be preset in "OnInitDialog".

BOOL CFontSelectDlg::OnInitDialog()
	// TODO: Add extra initialization here
	bContinue = FALSE;
	m_hbrush = CreateSolidBrush(RGB(220, 220, 220));
	rgbColor = RGB(0, 0, 0);
	m_rgbColor = (RGB(220, 220, 220));
	SetTimer(1, 500, NULL);

The code for the "Select Font Button".

"rgbCurrent" is set to black and is passed when you call "ChooseFont" MFC library common Dialog.

If the call to the Dialog is successful, it returns TRUE and you can get the returned values.

void CFontSelectDlg::OnBnClickedSelectFont()
	// TODO: Add your control notification handler code here
	BOOL bRet;
	static LOGFONT lf;        // logical font structure
	static COLORREF rgbCurrent;  // current text color
	rgbCurrent = RGB(0, 0, 0);
	rgbColor = rgbCurrent;
	int nPointSize;
	// Initialize CHOOSEFONT
	ZeroMemory(&cf, sizeof(cf));
	cf.lStructSize = sizeof (cf);
	cf.hwndOwner = NULL;
	cf.lpLogFont = &lf;
    // default color
	cf.rgbColors = rgbCurrent;
    // show screen fonts only and allow selection of colors, underline and strikeout.
	bRet = ChooseFont(&cf);

		rgbColor = cf.rgbColors;
		m_static1.SetFont(&m_font, TRUE);
		nPointSize = cf.iPointSize;
		CString szDisplay;
		CString szFont;
		CString szPointSize;
		CString szWeight;
        // "\r\n" tells the output to go to the next line.
		szFont.Format(_T("\r\n%s\r\n"), lf.lfFaceName);
		szPointSize.Format(_T("Point Size: %ld\r\n"), nPointSize);
		szWeight.Format(_T("Weight: %ld\r\n"), lf.lfWeight);
		szDisplay = szFont;
		szDisplay += szPointSize;
		szDisplay += szWeight;

The code for "OnCtrlColor". This function sets the text and background color when the program displays the string in the output window.

HBRUSH CFontSelectDlg::OnCtlColor(CDC* pDC, CWnd* pWnd, UINT nCtlColor)
	HBRUSH hbr = CDialogEx::OnCtlColor(pDC, pWnd, nCtlColor);
	HBRUSH hbrush;                  // brush handle
	hbrush = m_hbrush;
	// TODO:  Change any attributes of the DC here
	if(nCtlColor == CTLCOLOR_STATIC)
		hbrush = m_hbrush;

	// TODO:  Return a different brush if the default is not desired
	return hbrush;

The code for "OnSize". This code changes the size of the main window to display a larger font.

void CFontSelectDlg::OnSize(UINT nType, int cx, int cy)
	CDialogEx::OnSize(nType, cx, cy);

	// TODO: Add your message handler code here
	CWnd *pWnd;
	HWND hDlg;
	RECT rc;
	RECT rcItem;
	int buttonWidth;
	int buttonHeight;
	int buttonWidth2;
	int buttonHeight2;
	pWnd = GetDlgItem(IDCANCEL);
	hDlg = pWnd->GetSafeHwnd();
	::GetWindowRect(hDlg, &rcItem);
	buttonWidth = rcItem.right - rcItem.left;
	buttonHeight = rcItem.bottom -;
	::MoveWindow(hDlg, (rc.right - buttonWidth - 32),
          (rc.bottom - buttonHeight - 8), buttonWidth, buttonHeight, TRUE);
	pWnd = GetDlgItem(IDOK);
	hDlg = pWnd->GetSafeHwnd();
	::GetWindowRect(hDlg, &rcItem);
	buttonWidth2 = rcItem.right - rcItem.left;
	buttonHeight2 = rcItem.bottom -;
	::MoveWindow(hDlg, ((rc.right - (buttonWidth + 32)) -
       (buttonWidth2 + 8)), (rc.bottom - buttonHeight2 - 8), buttonWidth2, buttonHeight2, TRUE);
	pWnd = GetDlgItem(IDC_SELECT_FONT);
	hDlg = pWnd->GetSafeHwnd();
	::GetWindowRect(hDlg, &rcItem);
	buttonWidth = rcItem.right - rcItem.left;
	buttonHeight = rcItem.bottom -;
	::MoveWindow(hDlg, ((rc.right - buttonWidth - 32) / 2),
           (rc.bottom - buttonHeight - 8), buttonWidth, buttonHeight, TRUE);
	pWnd = GetDlgItem(IDC_STATIC_FONT);
	hDlg = pWnd->GetSafeHwnd();
	::MoveWindow(hDlg, (rc.left + 32), ( + 32), (rc.right - rc.left) - 64,
             (rc.bottom - - 96, TRUE);
    // Get saved font, force redraw of static window
   	m_static1.SetFont(&m_font, TRUE);

The code for "OnEraseBkgnd". This code changes the portion of the main window that is not used to display the selected font.

BOOL CFontSelectDlg::OnEraseBkgnd(CDC* pDC)
	// TODO: Add your message handler code here and/or call default
	CRect rc;
	pDC->FillSolidRect(rc, GetSysColor(COLOR_ACTIVECAPTION));

	return TRUE;

The code to pick the background color uses the "Right Mouse Button".

The right mouse button is used to select the background color of the selected font.

The right mouse is also used by the main program to display a context menu, therefore I check to see if the cursor is inside my display window frame.

If it is, set the bContinue flag to TRUE to allow selection of the background color.

void CFontSelectDlg::OnRButtonDown(UINT nFlags, CPoint point)
	// TODO: Add your message handler code here and/or call default
	CRect rc;
	CWnd *pWnd;
	HWND hWnd;
	CPoint pt;
	pWnd = GetDlgItem(IDC_STATIC_FONT);
	hWnd = pWnd->GetSafeHwnd();
	::GetWindowRect(hWnd, &rc);
	if(((pt.x > rc.left) && (pt.x < rc.right)) &&
		((pt.y > && (pt.y < rc.bottom)))
		bContinue = TRUE;
		bContinue = FALSE;
	CDialogEx::OnRButtonDown(nFlags, point);

void CFontSelectDlg::OnRButtonUp(UINT nFlags, CPoint point)
	// TODO: Add your message handler code here and/or call default
		CHOOSECOLOR cc;                 // common dialog box structure
		static COLORREF acrCustClr[16]; // array of custom colors
		HWND hwnd = NULL;                      // owner window
		HBRUSH hbrush;                  // brush handle
		static DWORD rgbCurrent;        // initial color selection

		// Initialize CHOOSECOLOR
		ZeroMemory(&cc, sizeof(cc));
		cc.lStructSize = sizeof(cc);
		cc.hwndOwner = hwnd;
		cc.lpCustColors = (LPDWORD) acrCustClr;
		cc.rgbResult = rgbCurrent;
		if (ChooseColor(&cc)==TRUE)
			hbrush = CreateSolidBrush(cc.rgbResult);
			m_hbrush = hbrush;
			rgbCurrent = cc.rgbResult;
			m_rgbColor = cc.rgbResult;
	CDialogEx::OnRButtonUp(nFlags, point);

And the last thing to do, display the string using "OnTimer".

void CFontSelectDlg::OnTimer(UINT_PTR nIDEvent)
	// TODO: Add your message handler code here and/or call default
	m_static1.SetWindowTextA(_T("\r\n\r\nRight click to set Background Color."));


Points of Interest

To display a string in a "Static Control", you can't have the code in "OnInitDialog" because the window has not been created yet. I used a 500 millisecond timer to display the text.


  • January 24th, 2019: V 1.0
