Articles / Desktop Programming / MFC

An MFC Interface to ::FormatMessage

Rate me:
Please Sign up or sign in to vote.
3.57/5 (13 votes)
30 Jun 2008CPOL3 min read 36.2K   16   3
This essay shows an interface that allows the ::FormatMessage API to be easily accessed from MFC.


This code actually appears in nearly all my projects. However, a number of readers have missed this, so I'm putting this code here (there's no download, you can copy-and-paste from this Web page).

This shows a way of interfacing to ::FormatMessage from MFC and using it in an MFC-compatible fashion.

The Problem

One of the common problems in handling errors is delivering complete, informative information to the end user. All too often, the problem is reported by one of these truly informative message boxes:

It is almost as useful as the one that says:

These are truly egregious examples which are all too common in far too many programs. The problem with this is that the user has no idea what to do in response to this error. Therefore, the user has to call tech support. What does this poor victim tell tech support? The contents of the dialog? You had better hope your tech support people don't know where your cubicle is, or you might meet with an unfortunate "accident" some day.

There is absolutely no excuse for such pitiful examples of error messages. None whatsoever.

The Solution

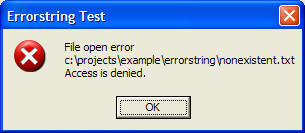

Now, this is an informative message:

It says there is a file open error (if I had more than one kind of file, even that line would be more precise), it says what file had the problem, and it says why. The user looks at this, realizes that the file is open in some other program, and closes that program. Or checks that the protections are properly set on the file. But does not feel compelled to call tech support.

How do you get that nice result? The answer is a remarkably few number of lines of code, which is why there is never an excuse for not producing a decent error message.

For example, to produce this message, I did:

BOOL CMyClass::ReadFile(const CString & filename)
    CFile f;
    if(!f.Open(filename, CFile::modeRead))
      { /* Failed */
       DWORD err = ::GetLastError();                 // [1]
       CString fmt;                                  // [2]
       fmt.LoadString(IDS_FILE_OPEN_ERROR);          // [3]
       // File open error\n
       // %s\n
       // %s
       CString msg;                                  // [4]
       msg.Format(fmt, filename, ErrorString(err));  // [5]
       AfxMessageBox(msg, MB_ICONERROR | MB_OK);
       return FALSE;
      } /* Failed */
    ... read file here
    return TRUE;
   } // CMyClass::ReadFile

This takes only five lines of code to do the job right. Therefore, there is never a justification for the completely incompetent message given as the first example.

Note one important point here. The very first line that is executed after the API fails is ::GetLastError. Do not put an ASSERT before it; do not do anything else; capture that error immediately.

To accomplish this, the ErrorString function must be written. However, given how trivial this function is to write, and that it only needs to be written once for your entire lifetime, there is little reason not to use it everywhere. To allow for localization, the string "Unknown error code %08x (%d)" is stored in the STRINGTABLE as the string IDS_UNKNOWN_ERROR.

I have never understood this phenomenon, but the first operating system that had an integrated error handling system, IBM's TSS/360, in 1968, would add a CRLF at the end of every error message string. This makes no sense. If I want a CRLF, I can add it. Nonetheless, Microsoft has continued this insanity nearly 20 years later. Each message ends with a CRLF. Why? There is no sensible explanation. So, I have to remove the terminal CRLF.

In addition, if you plan to use a message in some context that cannot understand newline sequences, such as a ListBox, you may wish to additionally do a CString::Replace(_T("\r\n"), _T(" ")) to get rid of gratuitous internal CRLF sequences.


CString ErrorString(DWORD err);


#include "stdafx.h"

#include "resource.h"
#include "ErrorString.h"

*                                 ErrorString
* Inputs:
*       DWORD err: Error code
* Result: CString
*       String message

CString ErrorString(DWORD err)
     CString Error;
     LPTSTR s;
            NULL) == 0)
    { /* failed */
     // Unknown error code %08x (%d)
     CString fmt;
     CString t;
     t.Format(fmt, err, LOWORD(err));
     Error = t;
    } /* failed */
    { /* success */
     LPTSTR p = _tcsrchr(s, _T('\r'));
     if(p != NULL)
        { /* lose CRLF */
         *p = _T('\0');
        } /* lose CRLF */
     Error = s;
    } /* success */
     return Error;
    } // ErrorString

A Philosophy of MessageBox/AfxMessageBox Calls

There is no place, in any program I write, in which there are two places that issue the same MessageBox/AfxMessageBox text. Just by looking at the text of the message, I can immediately tell what line of my program issued it. This is important. This makes it possible to determine the exact line of my program that issued the message.

Sometimes, if I have a generic error handler, I will pass in an extra CString parameter which appears in the MessageBox/AfxMessageBox so that the caller of the handler routine can be identified. There is no alternative to making sure that every user-visible error condition has a 1:1 correspondence with the site in the program that issues it.


This article, along with any associated source code and files, is licensed under The Code Project Open License (CPOL)

Written By
United States United States
PhD, Computer Science, Carnegie Mellon University, 1975
Certificate in Forensic Science and the Law, Duquesne University, 2008

Co-Author, [i]Win32 Programming[/i]

Comments and Discussions

GeneralThanks Pin
Damir Valiulin1-Sep-09 9:08
Damir Valiulin1-Sep-09 9:08
GeneralWhy not use CString.FormatMessage Pin
Rama Krishna Vavilala1-Jul-08 8:37
Rama Krishna Vavilala1-Jul-08 8:37
GeneralRe: Why not use CString.FormatMessage Pin
Joseph M. Newcomer1-Jul-08 10:00
Joseph M. Newcomer1-Jul-08 10:00
Well, the main reason is that what that article you cited does and what I do are not related except for the use of FormatMessage.

In the Microsoft article, you can use FormatMessage to format using a string argument, e.g.,

_T("There were $!d!1 bytes read from the file $2")

or you can store that string in the STRINGTABLE and specify the STRINGTABLE ID of the string. But that's all it does.

It does not convert a system error code to a printable string, and consequently it is missing two pieces of critical functionality that could be handled by a method


CString FormatMessageFromErrorCode(DWORD err, HINSTANCE module=NULL)

err: An error code obtained from ::GetLastError or some other means

module: a module handle of a module whose resource segment contains a supplementary MESSAGETABLE resource.


If the module is non-NULL, the FORMAT_MESSAGE_FROM_HMODULE flag will be added to the ::FormatMessage call.

Since this does not exist, I have to have my own function to do it.
